 Wood Turning Pens and Pen Mandrels

This page is made up of Hand turned pens made from various sustainable woods from around the world. The pens are turned on a lathe and then sanded to a fine high level grade to produce a glossy finish.

Each pen is completely hand made on a lathe. There is no automation used in the pen making process. Each piece is its own unique form of art and a limited edition collectible item. There are no duplicating machines used and each pen and/or pencil is hand-cut and hand finished to a 12,000 Grade Level to create a high lustre. After the sanding process is complete a Shellac Wax finish is then applied.

Each block of wood starts out as a one inch by one inch by 5 3/4 inch piece of wood. That block is cut into two pieces, with the excess being removed. The two new pen halves are then marked on each end to find its centre point. Once the centre point is determined on each halve, it is then drilled vertically down the centre. A brass tube is then inserted and glued into each half with a strong two part epoxy adhesive. The brass insertion prevents the wood from collapsing when it is later turned on the lathe.

Once the glue has had time to cure, it is then placed again onto the drill press under a squaring bit. Each halve is then squared until a flush surface with the brass fittings is achieved. Both halves are then place onto a mandrel which is connected to the lathe. Each halve is then "cut" with a gouge (type of wood chisel) until it has reached its desired shape. Each halve is then sanded to a high gloss (12,000 grade) finish.

A light Shellac and Carnauba Wax mixture is then applied. The Pen/Pencil is then removed from the mandrel for assembly with either Gold or Silver coloured parts. Final quality checks are made on the pen and then it is ready for use.

Pen Mandrels

Pen mandrels are a very helpful piece of equipment when turning pens as they ensure the pen runs accurately in the lathe. A pen mandrel is a steel bar machined accurately and is held in the lathe using a chuck or more commonly using a Drill driver (see Drill drivers) although many mandrels already have a drill driver as an integral part. It is recommended you purchase a double pen mandrel, which is long enough to accommodate both parts of the pen.

This allows for more accurate turning and consistency in wall thickness, eliminating any problems that may occur when finally building the pen. Due to the different tubes sizes of the many various pens available, there are matching bushing sets to slide over the mandrel and fit accurately into the ends of both tubes to ensure they turn concentrically. When the tubes and bushes are in place the tailstock is brought up into place and holds everything securely in place ready to be turned.

Note: You can view a bigger version of the wood turned items by placing your mouse curser on the image and click. A new window will open with the larger image. When finished viewing, just close the window and come back here to view the others.

Colour and markings may differ in appearance slightly in your finished turning from the one's shown in the photo's depending on wood used at the time they are turned. Each item is handcrafted individually, so slight variances should be expected especially if ordering more than one item. The sizes listed are approximate. They may be a couple of millimetres taller, longer, wider or little shorter, etc.

Commissioned works - Why not have that special one off piece crafted by a professional turner. I am available to make commissioned pieces for any special occasion, to your requirements . To discuss your requirements contact me Here

Arts and Crafts - Zebrano Pen woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

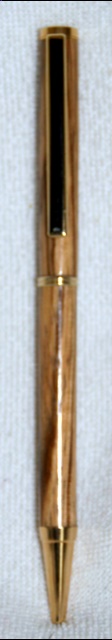

 SOLD WTP19 £12.00

Zebrano Pen
 WTP19

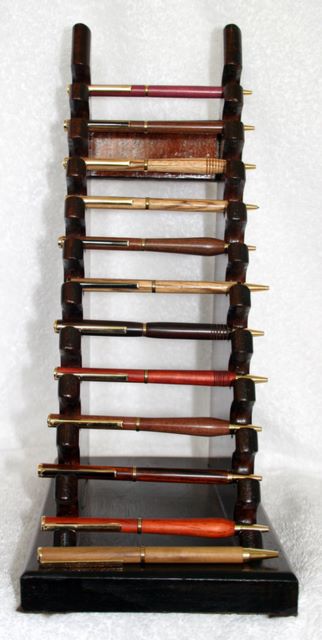

Arts and Crafts - Hardwood Pen Stand woodturned pens, woodturning, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

 SOLD WTP20 £20.00

Pen Stand
 WTP20

Arts and Crafts - , woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

 WTP21 £10.00

Pen
 WTP21
A lovely unique  hand turned pen made from Zebrano wood and high quality gold plated fittings with black inlay pen clip

Each Measure approx 14cm x 1cm
A very nice hand made pen rack made from solid mahogany wood which has been stained and finished with acrylic lacquer. Holds 11 pens, ideal for the budding pen maker

Measures approx
33cm high  x 14cm wide x 22cm deep

A lovely unique hand turned pen made from tropical wood and high quality gold coloured fittings

Measures approx
14cm x 1cm
Hand Turned Pen

 WTP22 £10.00

Pen
 WTP22
Wooden Pen

WTP23 £10.00

Pen
 WTP23
Wood Turned Pen

WTP24 £10.00

Pen
 WTP24
A lovely unique hand turned pen made from tropical wood and high quality gold coloured fittings

Measures approx
14cm x 1cm
 A lovely unique hand turned pen made from tropical wood and high quality gold coloured fittings

Measures approx
14cm x 1cm
A lovely unique hand turned pen made from tropical wood and high quality gold coloured fittings

Measures approx
14cm x 1cm
wood turned Pen

WTP25 £10.00

Zebrano Pen
 WTP25
wood turned Pen

WTP26 £12.00

Cocobolo Pen
WTP26
Pen

WTP27 £12.00

Santos Rosewood Pen WTP27
A lovely unique hand turned pen made from Zebrano wood and high quality gold coloured fittings

Measures approx
14cm x 1cm
 A lovely unique hand turned pen made from Cocobolo wood and high quality gold plated fittings with black inlay pen clip.

Measures approx
14cm x 1cm
A lovely unique hand turned pen made from Santos Rosewood and high quality gold Plated fittings with black inlay pen clip.

Measures approx
14cm x 1cm
Hand Turned Pink Ivory Pen, woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

  WTP28   £10.00

Pink Ivory Pen
 WTP28
woodturning Pens from Cocobolo, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees


 WTP29   £10.00

Cocobolo Pen
 WTP29

Santos Rosewood Pen woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

  WTP30 £10.00

Santos Rosewood Pen
 WTP30
A lovely unique  hand turned pen made from Pink Ivory wood and high quality gold coloured fittings

Each Measure approx 14cm x 1cm
A lovely unique hand turned pen made from dark Cocobolo wood and high quality gold coloured fittings

Measures approx
14cm x 1.2cm
A lovely unique hand turned pen made from Santos Rosewood and high quality gold coloured fittings. Wide pen grip

Measures approx
14cm x 1cm

Pen set hand turned in tropical wood

 WTP31 £50.00

Pen Set
 WTP31

handmade Pen Box

 WTP32   £5.00

Pen Box Only
 WTP32
Pen Box made from hardwood

WTP33 £5.00

Pen Box Only
 WTP33
A lovely unique set of 6 hand turned pens made from various figured woods and high quality gold coloured fittings

Each Measures approx
14cm x 1cm
 A lovely hand made pen box made from softwood and high quality gold coloured hinges

Measures approx
17cm x 4.5cm

Box Only
A lovely hand made pen box made from Hardwood and high quality gold coloured hinges

Measures approx
17cm x 4cm

Box Only
Plastic Pen Box

 WTP34   £1.00

Pen Box Only
WTP34
woodturned pen

 WTP35 £10.00

Zebrano Pen
WTP35
turned Pen

 WTP36 £12.00

Santos Rosewood Pen
WTP36
A nice pen box made from plastic

Measures approx
16cm x 3.5cm

Box Only
 A lovely unique hand turned pen made from tropical wood and high quality gold coloured fittings

Measures approx
14cm x 1cm
A lovely unique hand turned pen made from tropical wood and high quality gold plated fittings with black inlay pen clip.

Measures approx
14cm x 1.2cm
