 Creating Spalted Wood & Hollow Form Wood Turning

THREE PHASE STEP-BY-STEP PROCESS

Phase 1-Rough Turning A Side-Grain Blank

1. With a chain saw, cut a green log the length equal to the diameter of the log and then cut it down the middle. Removing 1inch beyond the pith, if you are not going to turn it immediately. If you are not going to turn it immediately paint the ends with some type of end sealer or latex paint to reduce checking. [Notice, if you are going to process the logs for later turning, cut the log 2 inches longer than the diameter of the log, split the log removing 1 inch either side of the pith and coat the ends with end sealer]

2. Determine the grain orientation on the blank. If it is to be a natural bark edge hollow form, the top of the form will be at the bark side and the bottom of the form is toward the pith.

3. To rough out the hollow form blank- Draw a circle on the bottom of the blank to determine the diameter of the bowl. Matching the size with a plywood disk, which is mounted and centred on the bark side of the blank. Place the blank on a band saw with the pith side on the band saw table and cut around the disk. Or rough it out using a chain saw.

4. Mount the rounded rough blank between centres with the bark edge at the headstock and the pith end at the tailstock. Make sure it clears the lathe bed and tool rest by manual turning the blank 360 degrees. Visually re-arrange the headstock and tail stock positions until at least the high sides are equal and if possible the lower sides also. At least two of the sides should be in the same plane for a balanced design.

5. Rough out the shape of the hollow form between centres, using the tailstock for safety, at a low lathe speed. Since the form is turned green, it will warp as it dries, so only the rough shape is needed at this stage. It is important at this stage to get the design of the form correct and accurate. NOTE-After the interior is removed, it is almost impossible to change the design. The largest part of the hollow form should be in the top or bottom 1/3 of the form not in the centre.

6. Using a rough out gouge or a 5/8 inch bowl gouge held at approximately 30 degrees up from horizontal, present the bevel until it rides the blank and raise the handle to pivot the cutting edge into the work and sweep the tool through an arc until it begins to cut. The flute of the tool will lie about at 45 degrees of vertical. The bevel does not have to ride the piece at this point. Rough out from the bark edge to the base or you will knock off the bark when turning it. Roughing speed on the lathe should be at a low speed, about 500-800 RPM's. Stop the lathe frequently to check your progress and to move the tool rest closer to the blank. Always make sure you are supporting the cutting edge. Take care that you never present an unsupported edge of a tool to the wood, you will get a catch. This is because when there is no support beneath the edge of the tool, the downward force of the rotating wood snaps the tool over.

7. Refine the design of the hollow form when it is in balance at a higher speed 900-1000 RPM's, using a more sensitive cut (sheer cut). Apply thin layer super glue to the bark edges after the hollow form profile is completely established, if it is to have a bark edge.

8. Prepare the base of the blank to be fitted with a faceplate or a chuck. If the form is very shallow, you can glue a scrap block onto the bottom with Yellow glue or Polyurethane glue (it works best because it needs moisture for it to cure). Let the glued blank dry over night, placing it in a bag or sealing the outside with end sealer better to do both. Failure to protect from drying will cause cracking. It is a shame to put all of this effort into a piece and have it crack because of carelessness.

9. Mount the blank on the faceplate or chuck to remove the interior of the form by hollowing. You are now ready to rough turn the interior of the form. This is the hardest part of this exercise since you will be "turning blindly inside the form". You can drill a 1 inch hole in the centre of the form to a depth of 1 inch from the bottom of the form blank or use a boring bar to make this cut. This provides a depth measure when removing the centre of the form.

10. Check the form blank is running true before turning the lathe on. Now is the time to get it running true by re-turning the sides of the form, if necessary. Keep the tailstock against the form blank for safety. When it is running smooth, you can remove the tailstock.

11. Interior hollow turning- Rough out the inside of the form to about 1 inch thickness. Starting with the inside of the hollow form (where the depth hole is) continue to remove the interior in a scooping motion using the body to support the tool and moving in a dance-like motion around the bowl. This movement is from right-to-left (from the lathe bed toward the head stock in a continuous motion) after you have cleaned the interior all you can with a straight tool, you then proceed to hollow with a curved tool as the interior of the form becomes wider and deeper. Since you are hollowing the form through a narrow opening, (This requires a steady hand! Go slow and remove the waste often since accumulation will bind the tool causing it to rip from the chuck and destroy the piece. This can be done with an air hose, by hand or using a coat hanger as a "scraper").

12. When a uniform thickness of 1 inch is achieved. Remove the form from the lathe and coat the interior edge of the bark with super glue. Coat both the interior and exterior of the form with end sealer and place in a bag paper or plastic on a shelf to air dry. Weigh the rough form and record the weight. Turn the hollow form bag inside out and place the form back in the bag and record the weight at least every two days. When the form no longer loses weight, it is stabilized. It can be further dried in a microwave (this technique is for another article). It should be at about 10-12 percent moisture content to finish turning. Kiln dried lumber is 8-10 percent moisture. Average drying time is 90- 120 days depending on conditions and the type of wood. The same procedure can be achieved with the use of a moisture meter.

Phase 2-Finish Turning

13. Remount the dried blank on the lathe. It will have warped so that the faceplate will have to be remounted, re-chucked or re-stabilized. This can be done between centres again by using a reverse chucking method. Finish turning the outside of the form so that it runs true and refine the design. Finish sanding the outside of the form on the lathe either by power sanding with a drill or by manual holding the sand paper against the bowl as it spins. (MAKE SURE YOU FOLLOW ALL SAFETY PRECAUTIONS FOR THIS TECHNIQUE.) Sand through the grits starting at 100 through 400 grit. Coat the outside of the bowl with one coat of DEFT semi-gloss lacquer. Let it set 3 minutes and wipe with a cloth. Turn the lathe on and burnish with the cloth or with shavings. Make sure you protect the lathe bed against splatter.

14. Finish turning the inside of the form from the edge to the centre of the bowl removing 1/8 to 1/4 inch at a time. Finish to 1/4" to 3/8" in uniform thickness in the walls and a little thicker in the bottom. Sand the interior and DEFT coat it like the outside of the bowl. Mark the interior bottom of the form on the outside of the hollow form to indicate the interior's depth. Remove form from the lathe. Remove the faceplate.

15. Repair any missing bark with the excess bark saved from the interior part of the bowl. Attach it with thick super glue and accelerating spray.

16. Reverse chuck the finished form. (Mount a smaller form on the faceplate and mount it on the headstock this is called a Jam chuck. Cover this form with a piece of carpet pad or leather to prevent "burning" and to provide a friction pad to drive the hollow form.) Place the neck of the hollow form against the jam chuck and tighten the tailstock against the bottom of the form. With the lathe at slow speed, make a concave impression on the bottom of the form, making sure not to cut through or make the bottom too thin. The bottom of the form before it is finished should be twice the thickness of the sidewalls plus the length of the screws holding it to the faceplate. The bottom of the form should be about the same thickness as the side walls when completed. For example, if the wall thickness is 1/4" thick then the bottom before finishing should be 1/2" thick. When it is finished turned and sanded it should be about 1/4" thick. Sand with the same grits as the rest of the form. Sign an date with a Sharpie pen. Coat the bottom lightly with spray Deft lacquer. Let it dry 2 hrs.

Phase 3-Finishing the Hollow Form

17. Coat the entire form with another coat of DEFT lacquer. Wipe dry after 15 minutes setup time, Let dry over night.

18. I use a jeweller's finish on my bowls and hollow forms. This is a technique that uses buffing wheels and compounds to get the desired finish. This process is:

A. Tripoli wheel charged with red Tripoli is used to remove excess finish and to smooth the outside of the form.

B. Coat the inside and outside of the form (anywhere you can reach) with a paste wax that has high carnauba content. Let it set for 30 minutes and buff off with the wax wheel charged with pure carnauba wax.

Thanks to Maurice Clabaugh

A very elegant shaped arts and crafts turned ornamental hollow form woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

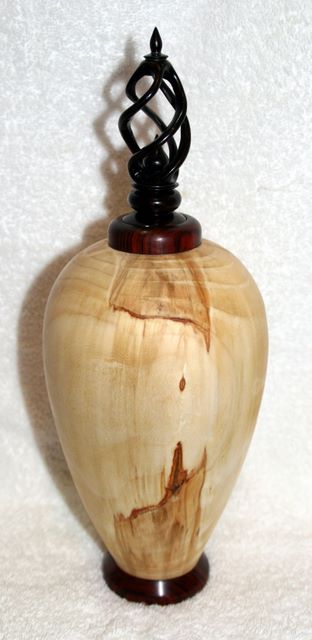

    SOLD WTH19 £20.00

Hollow Form WTH19 arts and crafts,woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

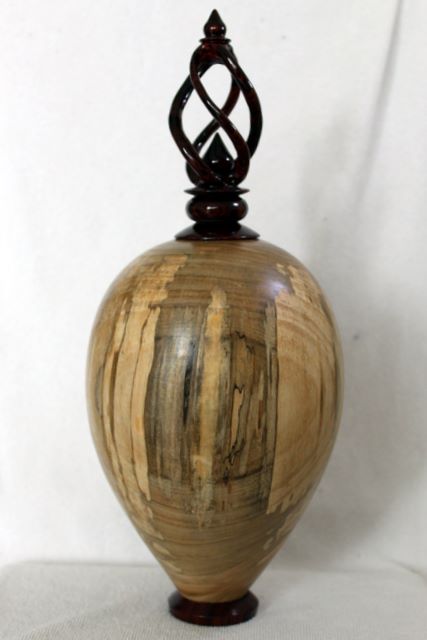

SOLD WTH20 £25.00

Hollow Form WTH20   arts and crafts

 SOON WTH21 £16.00

Hollow Form
 WTH21
A very nice long slim-line ornamental hollow form hand turned and carved in Ash, with a Cocobolo foot and frill cap and finished with an Ebony finial

Measures approx 29cm x 11cm
A smaller shaped ornamental hollow form, hand turned and carved in Ash, a curved square cap and foot Cocobolo and finished with an Ebony finial

Measures approx 18cm x 9cm
Another very nice shaped ornamental hollow form hand turned and carved in Spalted Oak, with a Cocobolo foot, Laburnum scalloped cap and finished with an Ebony finial

Measures approx
19cm x 9cm

Woodturned Hollow Form

  SOONWTH22 £20.00

Hollow Form
 WTH22


Turned Hollow Form


SOONWTH23 £16.50

Hollow Form WTH23

Woodturned Hollow Form Vase


 SOON WTH24 £10.50

Hollow Form WTH24
An unusually slim-line shaped ornamental hollow form hand turned and carved in Ash, with a Bubinga frilled cap and foot and  finished with an Olive wood finial

Measures approx 27cm x 9cm
 A very nice shaped ornamental hollow form with the Cocobolo top following the curve of the Ash body. Hand turned and carved in Ash, Cocobolo and finished with an Ebony finial

Measures approx 18cm x 9cm
Another smaller shaped ornamental hollow form this time turned and carved in Cocobolo body, Walnut square cap and finished with an Ebony finial and foot


Measures approx
13cm x 5cm

Hand Turned Hollow Form

 SOONWTH25 £12.50

Hollow Form WTH25
Hand Crafted Hollow Form

 SOONWTH26 £18.50

Hollow Form
WTH26
Handturned Hollow Form Vase


 SOONWTH27 £19.00

Hollow Form
WTH27
Another ornamental hollow form hand turned and carved in Sycamore, a Cocobolo foot and square coved cap, finished with an Ebony finial

Measures approx   20cm x 12cm
Another very nice shaped ornamental hollow form hand turned and carved in Sycamore, with a Rosewood foot and scalloped cap,  finished with an Ebony finial


 Measures approx 26cm x 15cm
A larger shaped ornamental hollow form hand turned in Filled textured Sycamore, with a Cocobolo foot and collar, finished with six tiny ebony turnings around the top of the main body and  a Large Ebony finial

Measures approx
27cm x 16cm

Ornamental Lidded Hollow Form woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

 SOONWTH28 £18.00

Hollow Form WTH28
Spiral Topped Ornamental Hollow Form woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

SOONWTH29   £12.00

Hollow Form WTH29   woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

 SOONWTH30 £17.00

Hollow Form
 WTH30
A nicely shaped ornamental hollow form with a Spalted Maple body, Ebony collar, topped with a  turned Ebony insert stopper

Measures approx 17cm x 11cm
A not so elegant ornamental hollow form with the Bubinga collar and foot, topped with a  turned and carved Bubinga spiral twist and Ebony  inset finial

Measures approx 19cm x 9cm
A nicely shaped ornamental hollow form with a Sycamore body, Ebony collar, topped with a  turned Ebony insert stopper

Measures approx
18cm x 9cm


Hollow Form with Finial

 SOONWTH31 £28.00

Hollow Form
 WTH31
Ornamental Hollow Form

 SOON WTH32   £75.50

Hollow Form WTH32
woodturned Hollow Form

SOON WTH33 £19.50

Hollow Form WTH33
An unusually  shaped ornamental hollow form hand turned in Cocobolo finished with an Ebony insert collar and an Ebony insert finial

Measures approx 17cm x14cm
 A very elegant shaped ornamental hollow form with the Cocobolo collar and foot, topped with a  turned and carved Cocobolo spiral twist and inset finial

Measures approx 18cm x 9cm
Another smaller bottle shaped ornamental hollow form with a  turned Ash body, Ebony cap and finished with an small Olive wood finial


Measures approx
13cm x 5cm
wood turned Hollow Form box

SOON WTH34   £35.50

Hollow Form WTH34 woodturned Ornamental Hollow Form

 SOON WTH35 £35.50

Hollow Form
WTH35
Oak Turned Hollow Form

SOON WTH36 £20.00

Hollow Form
WTH36
Another very elegantly shaped ornamental hollow form with a Anjan body, Ebony collar, topped with a  turned and carved Ebony spiral twist and inset finial

Measures approx   16cm x 12cm
Another very elegantly shaped ornamental hollow form with a Cocobolo body, Ebony collar, topped with a  turned and carved Cocobolo spiral twist and inset finial

 Measures approx 16cm x 12cm
A bulb shaped ornamental hollow form with a Oak body, Bubinga collar, topped with a  turned Oak insert finial

Measures approx
13cm x 10cm
