 General Woodturning - Techniques -  Chucks

This page is made up of Hand turned candle sticks, Christmas trees Mushrooms Fruits Goblets and Snowmen made from various sustainable woods from around the world. This page also describes some techniques and how to make a doughnut chuck which is very useful when turning the bottom of bowls and hollow forms.

Precision and Coordination :

Woodturning requires a great deal of coordination skills, accurate positioning and concentration. Craftsmanship in this woodworking activity demands precision using different body positions. In fact, the stance of your feet can affect the turning or spinning of the wood. In short, your body should be in sync with the woodturning lathe to achieve the desired cut, design, shape and form of the piece. Thus, there are factors that significantly affect the process. They include the stance, the grip, the rubbing bevel, the attitude with tools, and the direction of the cut.

It is important to have the proper stance. This will help you to reduce fatigue. Take note that the process requires prolonged standing. A good stance will help you endure the work at hand. A correct stance will also let you maintain steady control over the tools. The handling of tools during turnings requires certain movements of the hands and body. They should be synchronized with each other. In this case, the body should provide the hands with a firm support.

Balance is very essential. When the turner begins to work on the wood, your body weight should be properly balanced on both of your feet. Make sure that your torso and legs do not twist or even twitch. Your whole body should be vertically aligned with your hand as you steadily hold the tools.

Remember that your feet have to be close to the lathe. This position allows you to reach every part of the piece without bending as much. Feet position is related to the body-to-axis of the lathe orientation. It is recommended to stand slightly oblique. Your shoulders must cut the axis at a 15 degree angle and your feet should be slightly spread apart. They should also be pointing in the correct direction, which always depends on the kind of woodturning method used.

Woodturning requires unity between you, the tools and the lathe. Otherwise, you will not achieve your desired wood design or form.

Usually the first thing that many wood turners do when seeing a new bowl or hollow form is to pick it up and look at the bottom.

The reasons for doing this are to see the artist’s signature and to see that the bottom is appropriately finished. For many years, an unturned bottom has been regarded as unacceptable. Thus, one of the important steps in turning a piece is to turn the bottom.
There are several methods to hold a bowl or hollow form for this “reverse turning”. As each turning presents its own challenges, it is worth having several options in your mental tool kit. For large bowls, I use a vacuum chuck. For very small bowls, I often use
commercially made “Cole jaws” mounted on my standard chuck. Another option for bowls is to use a “doughnut chuck” and for
my hollow vessels I use a slightly modified “doughnut chuck”.

The doughnut chuck, in its simplest form, consists of a plywood circle attached to a faceplate, a separate plywood ring, and three or more bolts with wing nuts. (Alternatively, the faceplate circle could be made to fit into the jaws of a chuck.) A bowl or hollow vessel is then sandwiched between the two pieces of plywood and the bolts hold the whole thing together. To make a doughnut chuck, you will need plywood, a dedicated faceplate, screws for the faceplate, some foam padding, several bolts of the same diameter in various
lengths and matching wing nuts. Begin by selecting some plywood of the appropriate thickness.

Use 3/4” plywood for the faceplate circle, and 1/4” plywood for the ring. For heavier pieces, you may want to use thicker plywood. Attach two (or more) pieces of plywood face to face with double stick tape. Cut this stack of plywood into circles with a bandsaw. The diameter of these circles should be at least two inches larger than the diameter of the largest bowl (or vessel) for which the chuck will be used. While the plywood circles are still connected by the tape, drill three (or more) equally spaced holes centred approximately 1/2” in from the outer diameter of the circles.

The diameter of these holes depends on the bolts you will be using (I use 1/4” bolts of lengths ranging from 3” to 6”). Bolt the circles together. Attach the faceplate circle to a faceplate with screws of appropriate length. Mount the entire assembly on the lathe.
True up the outer edges of the circles on the lathe.

Mark the edges of the circles so that you can align them the same way each time. With a parting tool, remove a circle of an
appropriate size to create the plywood ring. Note that the diameter of the opening in this ring should be large enough to allow the foot of the bowl to be fully exposed for the reverse turning, but not too large. I make several different rings with openings of various diameters so that the chuck system can accommodate a wide range of turnings. Dismantle the assembly. Cut some protective foam padding and glue it to the surfaces of the faceplate circle and the ring where they will touch the turning. You are now ready to use the chuck.

Mount the bowl in the chuck with the rim on the faceplate circle and the bottom protruding through the ring. Secure with
bolts, being careful to put the wing nuts on the headstock side. Mount the assembly on the lathe. The tailstock can be used to align the centre of the bowl and hold it in position as you tighten the wing nuts. Don’t over tighten, as it is possible to crack a thin bowl.


When the chuck is fully tightened, you can turn the bottom. I usually leave the tailstock in place as long as possible for safety, but it can be removed for completing the bottom. I always use this chuck at a fairly low speed – perhaps 600 or 800 rpm at maximum.
The hollow vessels that I turn have small entrance holes – from 1” to 2” in diameter. To aid in aligning a vessel, I add a wooden
cone in the centre of the faceplate.

Note: You can view a bigger version of the wood turned items by placing your mouse curser on the image and click. A new window will open with the larger image. When finished viewing, just close the window and come back here to view the others.

Colour and markings may differ in appearance slightly in your finished turning from the one's shown in the photo's depending on wood used at the time they are turned. Each item is handcrafted individually, so slight variances should be expected especially if ordering more than one item. The sizes listed are approximate. They may be a couple of millimetres taller, longer, wider or little shorter, etc.

Commissioned works - Why not have that special one off piece crafted by a professional turner. I am available to make commissioned pieces for any special occasion, to your requirements . To discuss your requirements contact me Here

A Group of Arts and Crafts Wood turned  Mushroom woodturnings, woodturning, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

SOLD WT1 £30.00

Mushroom WT1 Artsand Crafts - Wood turned Bowl and Fruit woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

SOLD WT2 £35.00

Fruit WT2 Arts and Crafts - Wood turned Mushrooms set in bogwood

 SOLD WT3 £30.00

Mushroom WT3

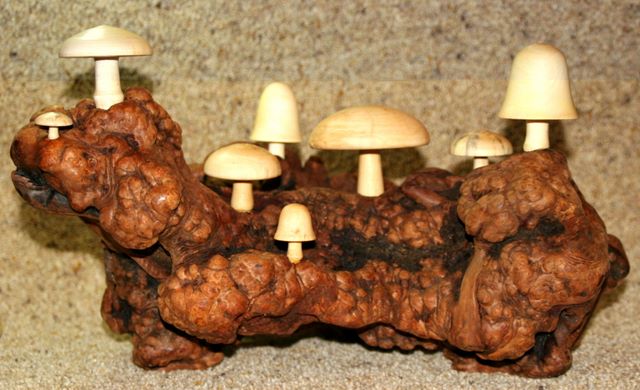

Hand turned mushrooms made from various softwood and set in to a piece of old bog wood

Measures approx 40cm x 20cm

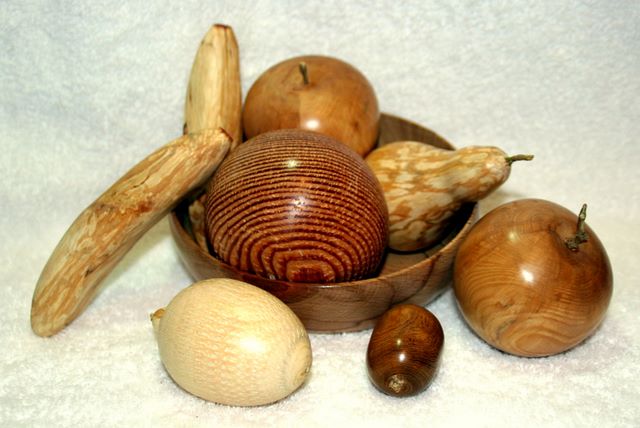

Hand turned fruit made from various softwoods set in a mall willow fruit bowl

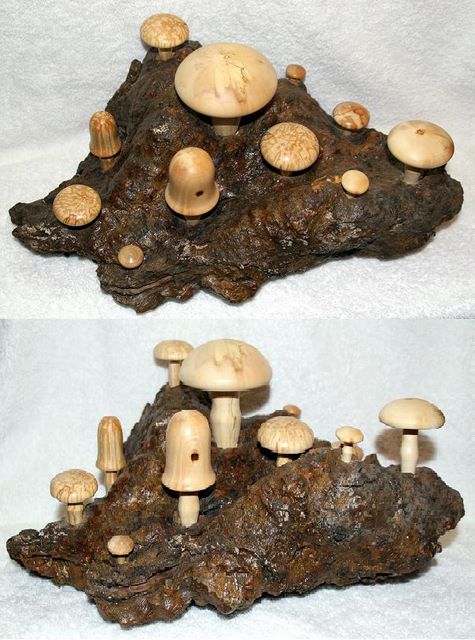

Hand turned mushrooms made from various softwood and set in to a piece of old bog wood

Measures approx 43cm x 21cm
Hand Turned His and Hers Candle sticks

 SOLD WT4 £16.00

Candlesticks WT4 Large Ornamental Candle stick turned form Pinewood

SOLD WT5 £19.50

Candlestick WT5 pair of candle sticks hand turned ebony twist stems with sycamore tops and bases with embossed paternation

 SOLD WT6 £17.50

Candlesticks WT6

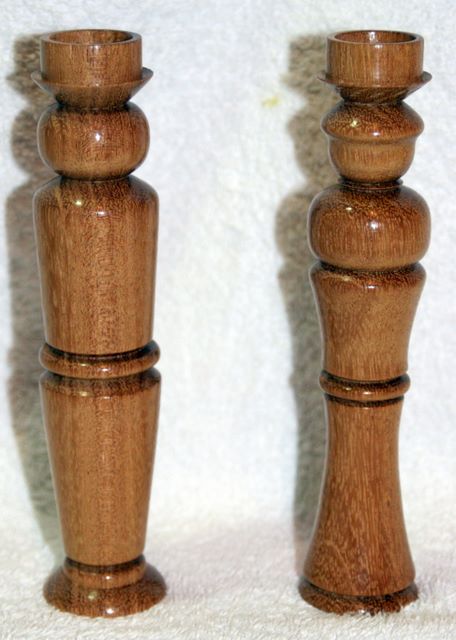

A nice pair of his and hers candle sticks hand turned from mahogany

Measures approx 15cm x 2.5cm

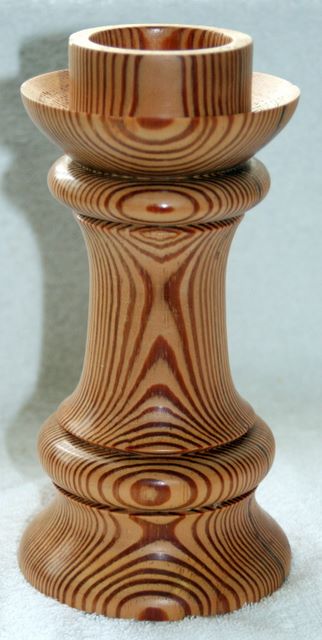

A lovely hand turned pine candlestick which holds a standard size night light candle

Measures approx 25cm x 9cm

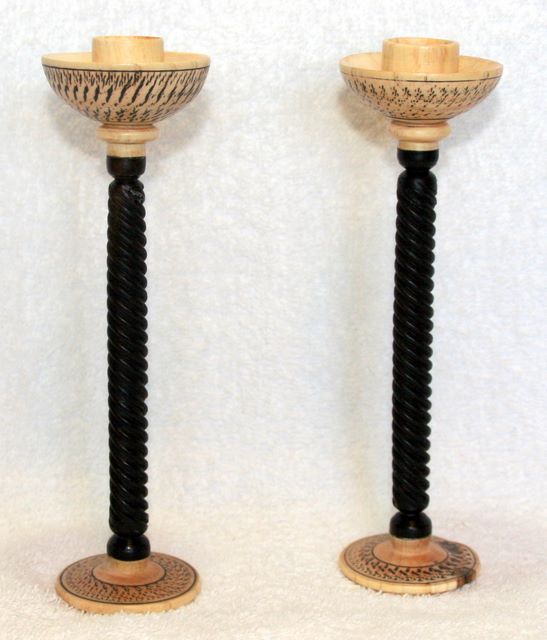

A fine pair of candle sticks hand turned ebony twist stems with sycamore tops and bases with embossed paternation

Measures approx 15cm x 3cm
wood turned Goblet

 SOLD WT7 £10.50

Goblet WT7 wood turned goblet

 SOLD WT8 £9.50

Goblet WT8 greetings cards,handmade cards,handmade greetings cards,handmade greeting cards,making

SOLD WT9 £14.00

Mushrooms WT9

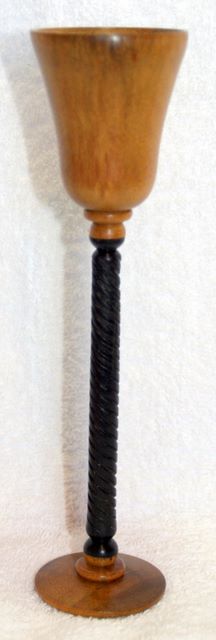

A very nice hand turned goblet with the cup and base made from iroko with a hand twisted ebony stem

Measures approx 15cm x 5cm but can be made any size required

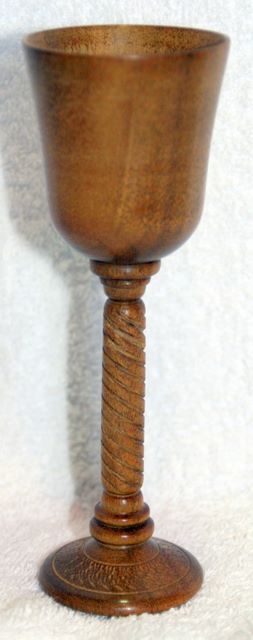

A very nice hand turned goblet with the cup and base and twisted stem made from iroko which is a lovely golden brown hardwood from West Africa

Measures approx 12cm x 5cm but can be made any size required

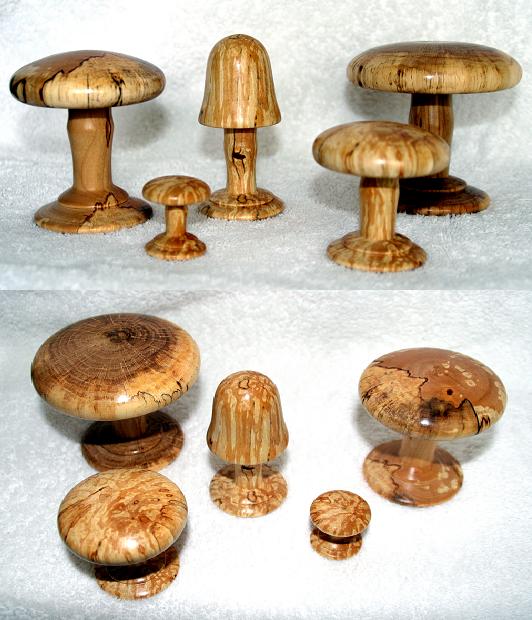

A nice set of 5 hand turned ornamental mushrooms
Made from spalted sycamore and spalted oak
1x 8cm x 9cm
1x 8cm x 7cm
1 x 8.5cm x 4.5cm
1 x 5cm x 6cm
1 x 2.5cm x 3cm
A nice set of 3 turned candle sticks, woodturnings, woodturning, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

 WT10   £18.00

Candle Sticks WT10
Set of 5 Christmas Trees hand turned, woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

 SOLD WT11  £26.00

Christmas Trees WT11 A very nice trio of turned snowmen, Woodturning, woodturnings, turning, turnings, turnery, turner, turners, woodturner, woodturners, lathe, lathes, wood, woodwork, woodworking, workshop, workshops, creative, creativity, trees

SOLD WT12 £35.00

Snowmen
WT12

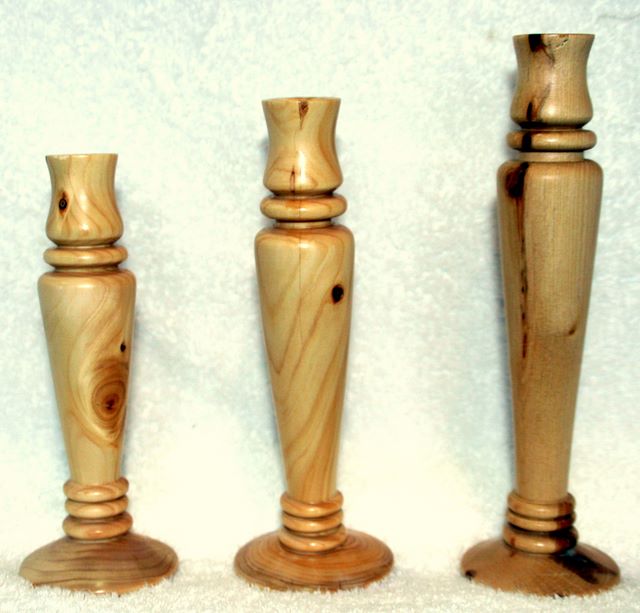

A nice set of 3 candle sticks hand turned from Sycamore.
Fits standard candles

Measures approx 20cm
17cm
15cm
Set of 5 Christmas Trees hand turned and carved from Sycamore and Laburnum

Measures from left to right
15cm x 7cm
11cm x 6cm
16cm x 8cm
10cm x 6cm
  14cm x 10cm
A very nice trio of happy snowmen Hand turned from Sycamore Ash Cherry Cocobolo and Ebony noses

Measures approx from left to right
12cm x 8cm
13cm x 7cm
14cm x 8cm
Hand Turned Snowman made from ash and cocobolo

 SOLD WT13 £15.00

Snowman1
 WT13
A snowman hand turned from Sycamore with an Ebony nose

SOLD WT14   £14.00

Snowman2
WT14
Another happy snowman hand turned from Cherry wood and Ebony nose

 SOLD WT15 £14.00

Snowman3
 WT15

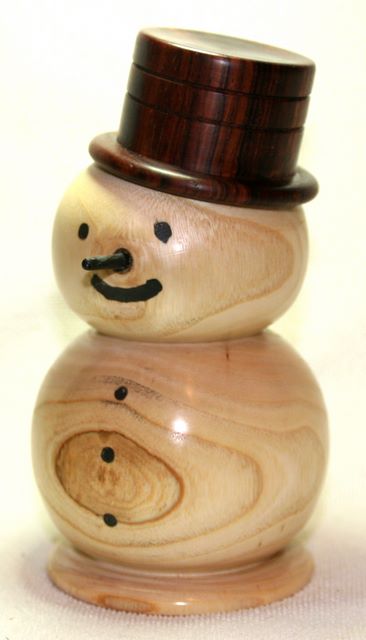

A happy snowman hand turned from Ash with and Cocobolo tilted hat and a Ebony nose

Measures approx 13cm x 7cm

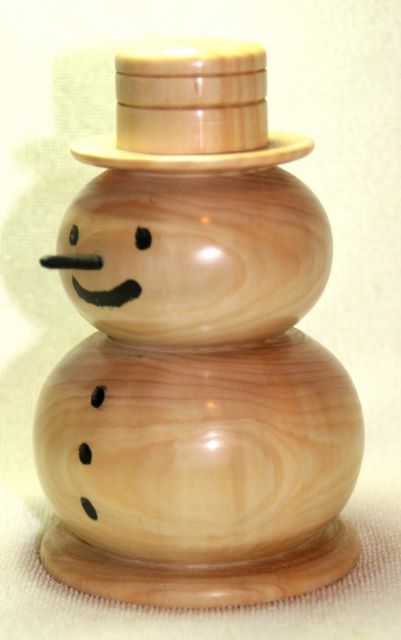

Another very happy snowman hand turned from Sycamore and a Ebony nose

Measures approx 12cm x 8cm

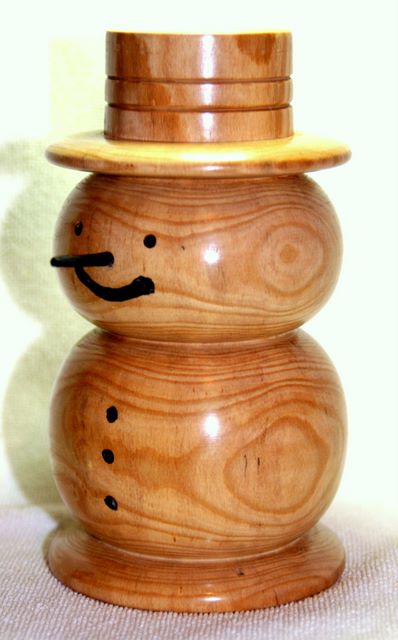

Yet another happy snowman hand turned from Cherry wood and a Ebony nose

Measures approx 14cm x 8cm
A hand turned and carved Christmas tree made from Ash

 SOLD WT16   £4.50

Christmas Tree  WT16 A Christmas tree hand turned and carved form a single piece of Laburnum

 SOLD WT17 £5.50

Christmas Tree  WT17 Yew christmas tree woodturning

 SOLD  WT18 £6.00

Christmas Tree  WT18

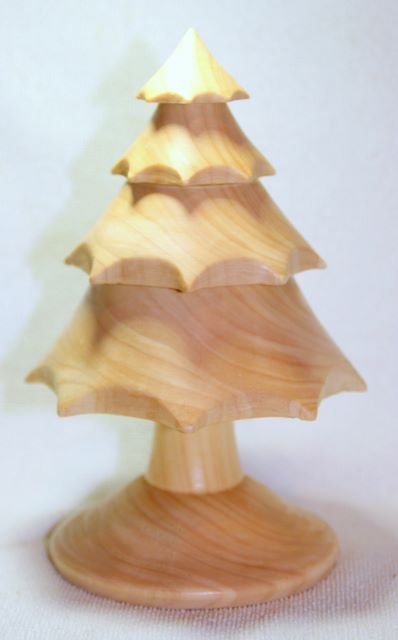

A very nice hand turned and carved Christmas tree made from a single piece of Ash

Measures approx 15cm x 10cm but can be made any size

Any number available

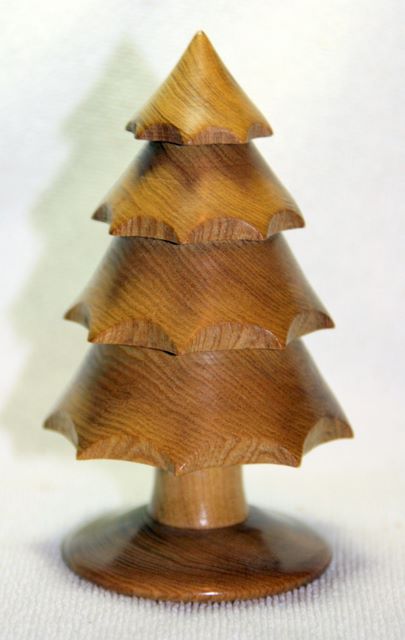

Another nice Christmas tree hand turned and carved form a single piece of Laburnum

Measures approx 15cm x 10cm but can be made any size required

Any number available

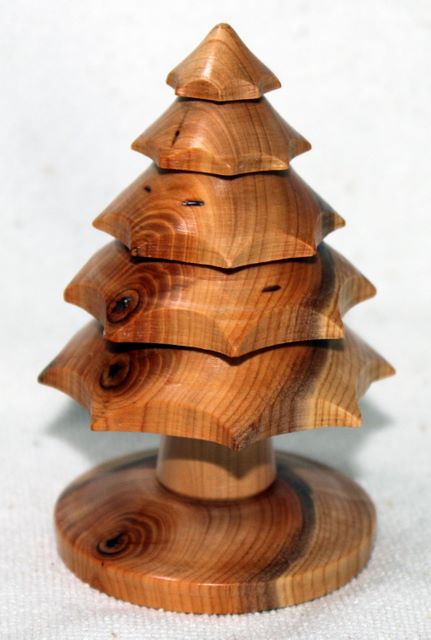

Another nice Christmas tree hand turned and carved form a single piece of Yew

Measures approx 15cm x 10cm but can be made any size required

Any number available
